EV charger installation in Butler.
Family homes, train station commuters and a lot of first time EV owners asking the same practical question. What does a proper charger actually cost here.
The install
What a Butler install actually looks like

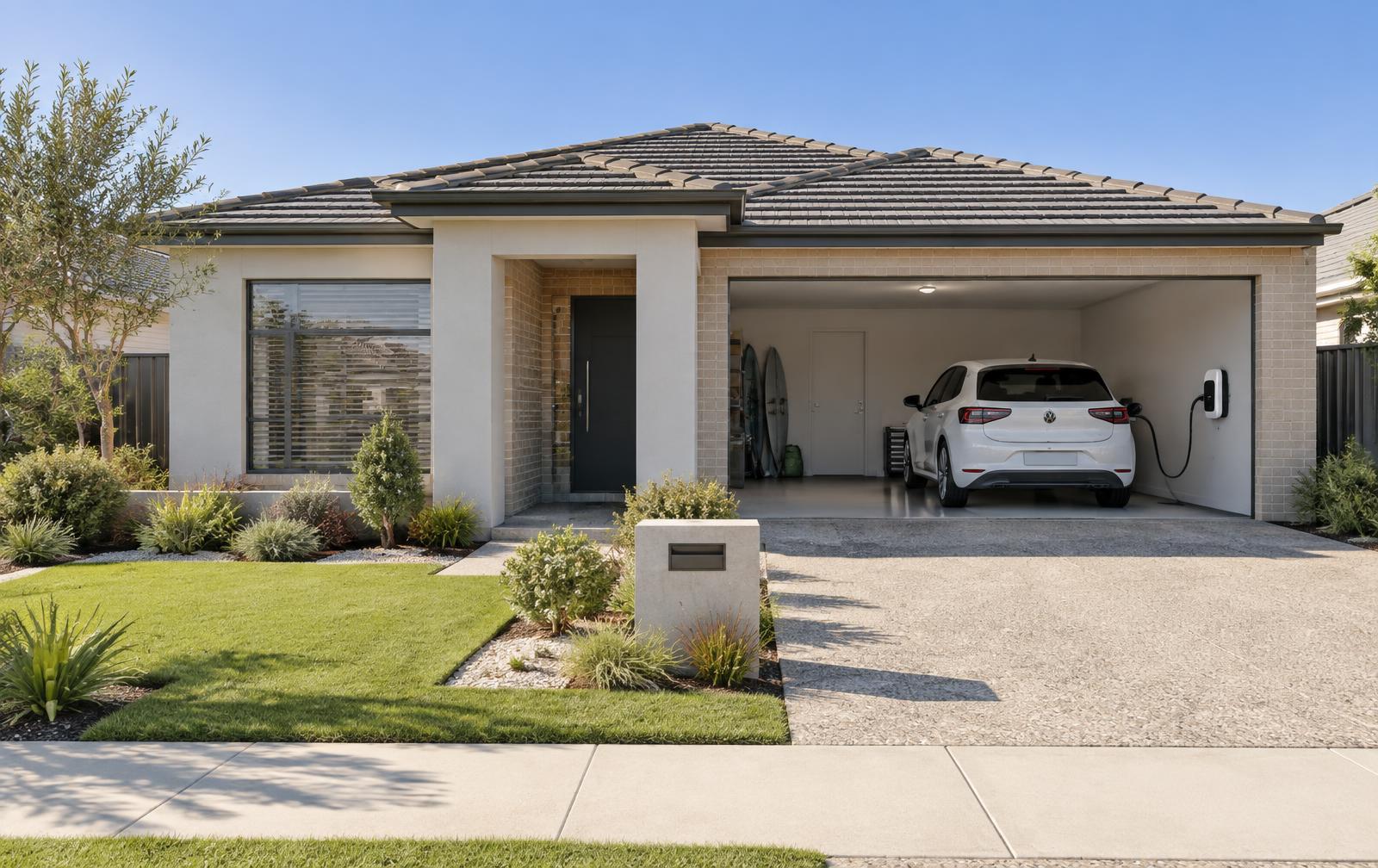

Butler is mostly project built homes from the 2000s onward, single storey, brick and tile, with an attached double garage and the meter box on the side of the house. That layout suits charging. The run from the board around to the garage wall is usually short, and the charger ends up out of the weather and out of sight from the street.
The board is modern but often full. Plenty of Butler homes have solar, a second circuit for a shed or a pool, and no spare way left. Adding a dedicated EV circuit sometimes means reorganising the board or fitting a small sub board, which is a straightforward job when it is priced up front rather than discovered on the day.
Households here tend to run two cars, and the second one goes electric a year or two after the first. Setting up load sharing while the first charger goes in avoids paying twice for the same cable route.
Charger picks
Which charger suits a Butler home
Tesla Wall Connector Gen 3
Small footprint, very reliable, and two units can share one circuit when the second EV arrives. Works with any EV using the right cable.
View the Tesla guide
myenergi Zappi GLO
The pick if the roof already carries solar. It puts surplus into the car and handles off peak scheduling automatically.
View the myenergi guide
BYD Home Charger
Compact and app controlled. A sensible value option where solar diversion is not needed.
View the BYD guide
Solar first
Most Butler homes already have the hard part installed

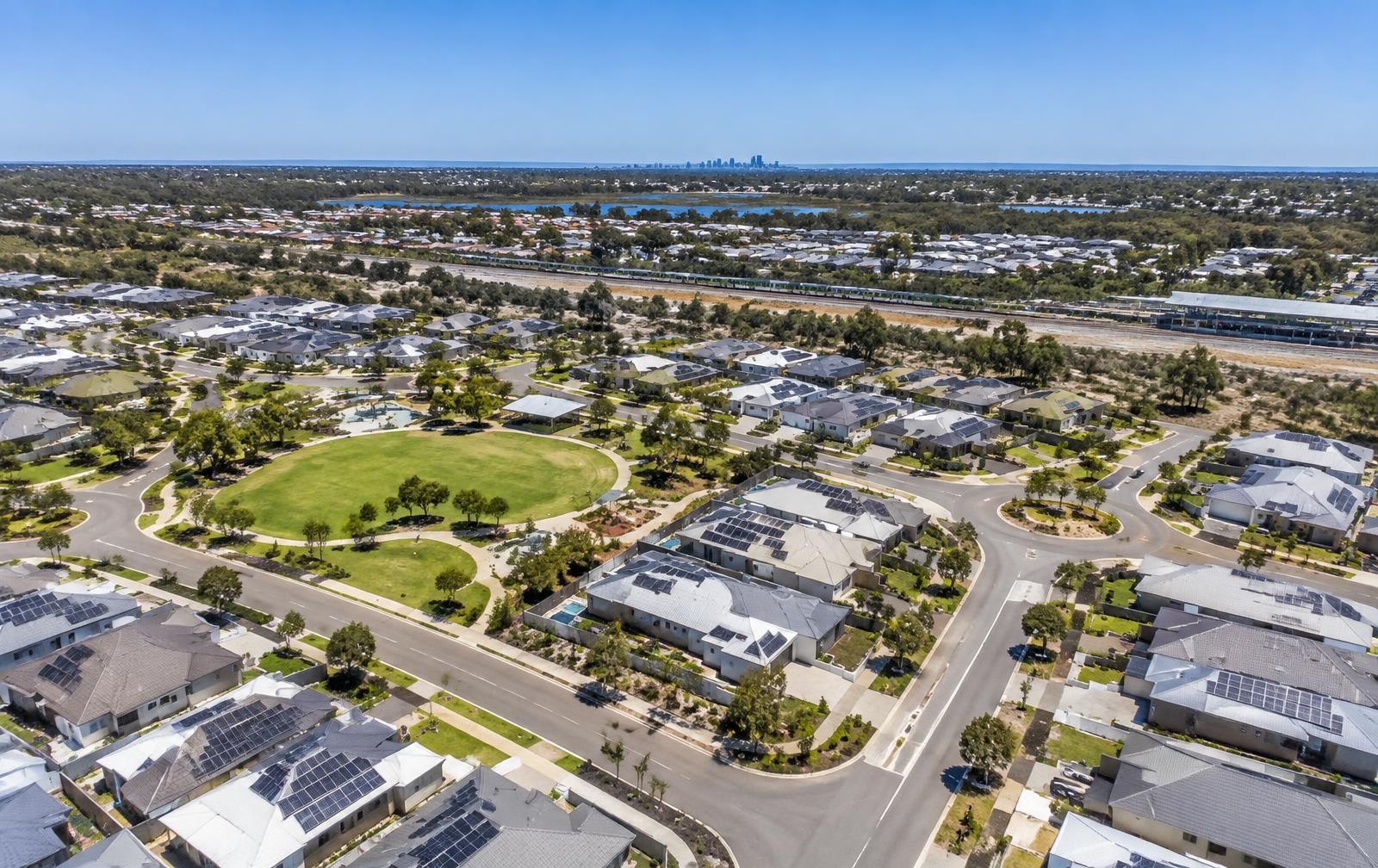

Solar coverage in Butler is high, and a lot of that generation gets exported at a credit far below the evening buy back rate. Charging the car off your own roof is the single biggest saving available to a Butler household without changing anything else.
If the car is away at work through the middle of the day, the honest answer is that scheduling matters more than solar diversion. Set the charge to run inside your cheapest tariff window and let the charger manage it. On weekends the same unit can go back to using the roof.
Typical setup
A sensible Butler charging plan
- Location
- Butler 6036
- The home
- Single storey brick and tile family home, 6.6kW solar, single phase, attached double garage, second EV likely within two years.
- The charger
- 7kW wall charger on the garage wall with the circuit sized and the conduit routed for a second unit later.
- Outcome
- Dedicated circuit, board tidied and load assessed, off peak schedule set on day one. A full overnight charge for well under the cost of a tank of fuel.
What to know before install day in Butler
- Check whether the board has a spare way before comparing quotes. It is the most common reason two prices for the same job look different.
- Plan for the second car now. Load sharing between two chargers is cheap to allow for and expensive to retrofit.
- Match the charger to your electricity plan. If you are on a time of use tariff, scheduling is where the savings come from.
- Ask for the compliance paperwork. A safe install includes testing, an electrical certificate and a network notification where required.
Butler EV charging questions
How much does EV charger installation cost in Butler?+
Most Butler homes fall between $1,350 and $2,350 fitted, depending on the charger and whether the board needs work. We give you the real figure after a free assessment rather than a number that changes on the day.
Can I get a home EV charging station in Butler with no solar?+
Yes. Without solar the win comes from tariff scheduling. A charger set to run in your off peak window still cuts running costs to a fraction of petrol.
Will a 7kW charger overload a Butler home switchboard?+
Not when it is designed properly. We assess the whole home load and use dynamic load management so the charger backs off during peak household demand instead of tripping the main.
Can two EVs share one charger circuit in Butler?+
Yes. Several units support power sharing across two chargers on one supply. Planning that at the first install saves a second cable run later.
Do I need council approval to install an EV charger in Butler?+
No council approval is needed for a standard home charger. It must be installed by a licensed electrician, tested, certified and notified to Western Power where the network requires it.
EV charger installation in Perth, answered
The questions we get asked most by WA homeowners, answered by the electricians who do the work.
Does Western Power need to be notified about my EV charger?+
For a standard single phase 7kW charger on an existing supply, no separate application is usually needed. Your electrician still lodges the required notice of completion with Building and Energy WA. If the install needs a bigger main switch, a service upgrade, or a move to three phase, that does go to Western Power first and it adds time to the job, so we check it before quoting.
Is single phase or three phase more common in Perth homes?+
Most Perth houses are single phase, which caps a home charger at about 7.4kW. Newer estates in areas like Ellenbrook, Baldivis and Canning Vale are more likely to have three phase already at the board, and a lot of older knock down rebuilds get it too. Lift the switchboard cover and count the incoming actives, or send us a photo and we will tell you.
Which Synergy plan is best once I have a home charger?+
Synergy runs time of use options aimed at EV owners with a cheap overnight window and a cheaper midday window built around WA's solar surplus. Charging in those windows rather than the evening peak is where the real savings sit. Check current rates on Synergy's site before switching, because the windows and prices change.
Should I charge from my solar instead of the grid in Perth?+
Usually yes. WA feed in tariffs are low, so exporting midday solar earns you very little while grid power costs several times more. A solar aware charger such as a myenergi Zappi or Fronius Wattpilot watches your export at the switchboard and pushes surplus into the car instead of sending it out for a few cents.
Do coastal Perth suburbs need a different charger?+
If you are in the salt spray zone near the coast from Mullaloo through Scarborough, Cottesloe and Fremantle, outdoor units cop corrosion. We fit chargers rated IP65 or better, use stainless or marine grade fixings, and where possible mount the unit inside the garage with only the tethered lead exposed.
What about summer heat and charger derating?+
Perth summers regularly sit over 40C, and a charger baking in full afternoon sun can throttle its output to protect itself. West and north facing walls are the worst spots. We site the unit in shade or under eaves where we can, which keeps it charging at full rate and extends the life of the electronics.
Can I get a charger installed in a Perth apartment or strata complex?+
Yes, but it is a different job to a house. You need strata approval, a metering plan so the electricity bills back to your lot rather than common property, and often a load managed charger so the building's supply is not overloaded. We put that documentation together for the strata council as part of the quote.
How does a limestone driveway or brick paving affect the cable run?+
Plenty of Perth homes have the switchboard on one side and the parking on the other, with paving or limestone in between. Where we can, we run the cable through the roof space or along the eaves to avoid lifting anything. When trenching is unavoidable we lift and relay pavers rather than cut them, and that extra work is priced up front, not added later.
Are there WA rebates for home EV chargers?+
WA does not currently run a state rebate on home charger installs. The EV rebate scheme that ran on vehicle purchases has closed. The saving comes from the tariff side instead: charging off peak or straight off your own solar. We will not quote a rebate that does not exist.
Who is legally allowed to install an EV charger in Perth?+
A licensed WA electrical contractor. The circuit has to be dedicated, protected by the correct RCD type for the charger, and wired to AS/NZS 3000 with the EV specific requirements of AS/NZS 3012 and the manufacturer's instructions. Candela is licensed under EC# 15317 and fully insured, and you get the compliance paperwork on completion.
