7kW EV charger installation in Perth
Nine out of ten Perth homes are better off with a 7kW single phase charger than anything faster. It suits the supply you already have, it fills the car overnight, and it follows your solar during the day. Here is the detail behind that call.
Four reasons it is the right size for a Perth home
It matches how Perth actually drives
The average metro commute is well under 60km a day. At roughly 40km of range per hour, a 7kW charger replaces that in about 90 minutes, and it refills an almost empty battery overnight inside a single off peak window.
It fits single phase supply
A 7.4kW charger draws 32 amps on one phase. Most Perth homes run a 63 or 80 amp single phase main, so there is room for it without touching your supply. No Western Power application, no service upgrade, no waiting.
It follows your solar down to 1.4kW
A solar aware 7kW unit can throttle right back and track whatever the panels are exporting. With WA feed in tariffs as low as they are, putting that surplus into the car instead of the grid is the single best return in Perth.
It is the cheapest compliant path
Stepping up to three phase means a supply upgrade on most older homes, and plenty of EVs only take 11kW on AC anyway. Unless you are doing serious daily kilometres or running two EVs, the extra spend buys speed you will sleep through.
What 7kW does to a real battery
Figures are from empty to full at 7.4kW, using roughly 16kWh per 100km. Nobody charges from empty, which is the point. The column that matters is the last one.
| Car | Battery | Empty to full | Everyday top up |
|---|---|---|---|
| BYD Atto 3 | 60kWh | About 8.5 hours | 50km commute in 1 hour 15 |
| Tesla Model Y RWD | 60kWh | About 8.5 hours | 50km commute in 1 hour 15 |
| Kia EV5 Air | 64kWh | About 9 hours | 50km commute in 1 hour 20 |
| MG4 Excite 51 | 51kWh | About 7 hours | 50km commute in 1 hour 10 |
| Tesla Model 3 Long Range | 79kWh | About 11 hours | 50km commute in 1 hour 10 |
| Polestar 4 | 100kWh | About 14 hours | 50km commute in 1 hour 15 |
Three things we check before quoting 7kW
Count the incoming actives
Lift the switchboard cover. One thick incoming active is single phase, three means you already have three phase. Send us a photo and we will tell you in a minute.
Check what else runs at night
Ducted aircon, an electric hot water unit and an oven together can take most of a 63 amp main. That is where load management earns its keep.
Older boards need RCD work
Ceramic fuses and no RCD protection means the board needs bringing up to current requirements before a new circuit goes on it. Better protection for the whole house, not just the charger.
The shortlist worth your money
myenergi Zappi 7kW
The solar diverting benchmark. Three charging modes, CT clamp at the meter, and the app that actually shows you where the energy came from.

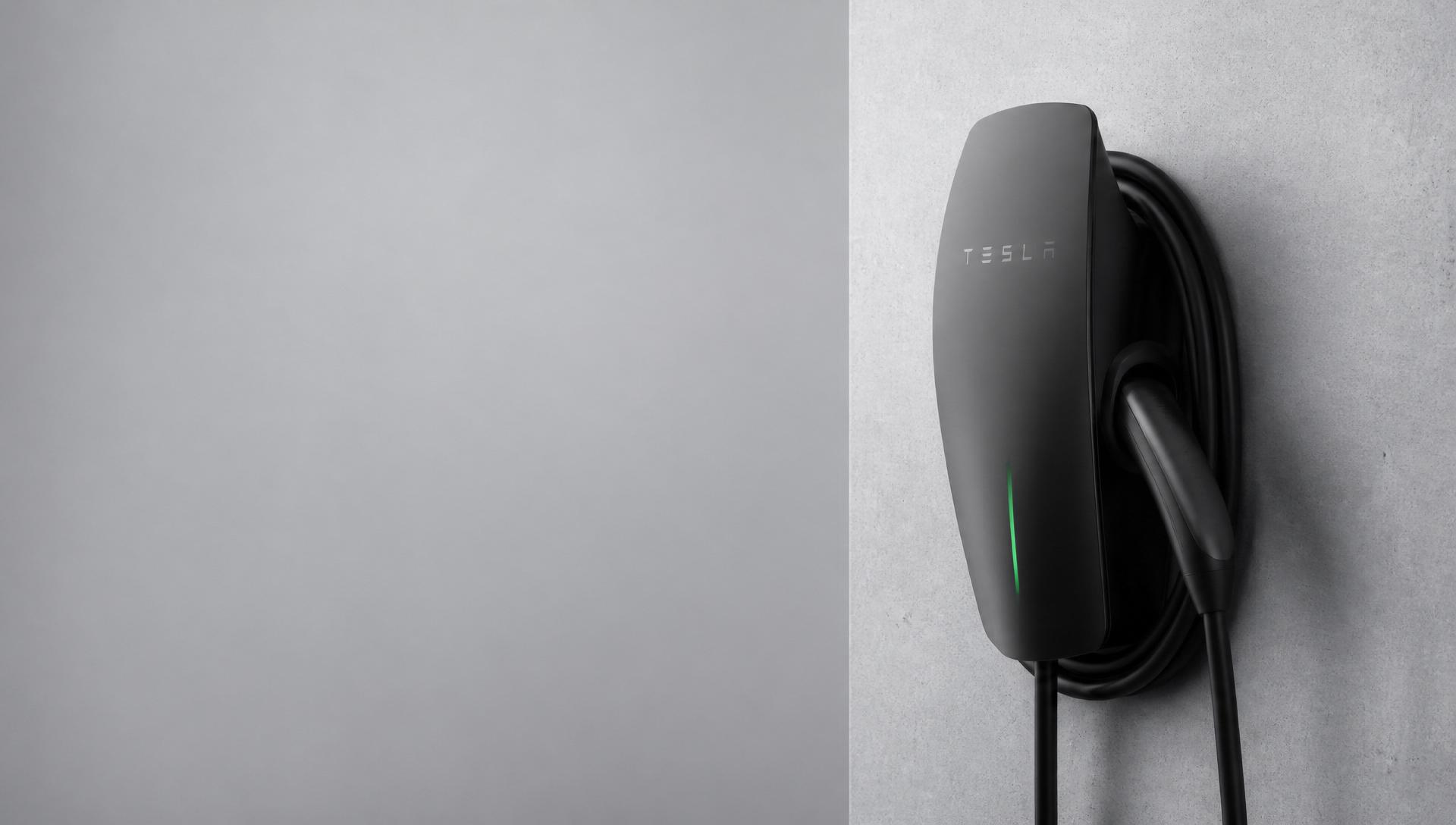

Tesla Wall Connector Gen 3
Clean, fast and simple. Works with any Type 2 EV, not just Teslas, and it is the tidiest looking unit on a wall.
Fox ESS A Series 7kW
Strong value with app control and dynamic load balancing built in. A sensible pick when solar diverting is not the priority.
BYD 7kW
Straightforward, well built and well priced. Popular with Atto 3, Seal and Dolphin owners who want matching hardware.
7kW charging questions, answered
How fast does a 7kW charger charge an electric car?+
Around 40km of range per hour on a typical mid size EV. Overnight on an eight hour off peak window that is roughly 300km put back into the battery, which is more than most Perth drivers use in a week.
Is 7kW enough for my EV?+
For the vast majority of homes, yes. The average Perth commute is well under 60km a day, so a 7kW charger tops that up in under two hours. You only really need more when two EVs share one charger, when you drive 200km plus most days, or when you want to soak up a big midday solar surplus quickly.
What is the difference between 7kW and 22kW charging?+
7kW is single phase at 32 amps. 22kW is three phase at 32 amps, so about three times the speed. Two catches: your home needs three phase supply, and your car needs a three phase onboard charger. Plenty of EVs cap at 11kW on AC, so a 22kW unit will still only deliver 11kW to them.
Can I install a 7kW charger on a single phase Perth home?+
Almost always. A 7.4kW charger draws 32 amps, and most Perth homes have a 63 or 80 amp single phase main. Where the board is already busy we either rebalance it or add load management so the charger shares what is left safely.
How much does a 7kW EV charger installation cost in Perth?+
A basic 7kW unit on a modern board with a short cable run is usually $1,350 to $1,650 supplied and installed. Step up to a solar aware 7kW charger with a longer run and it lands between $1,750 and $2,400. Those are guide ranges, your written quote is fixed before we book.
Does a 7kW charger work with solar?+
With the right unit, very well. A solar aware 7kW charger can throttle down to about 1.4kW and follow whatever your panels are exporting, so the car soaks up surplus that would otherwise go back to the grid for a few cents. On a sunny Perth day that is most of a weekly commute charged for free.
Where we install across Perth
We are a Perth based electrical contractor working the full metro, from Yanchep in the north to Mandurah in the south. Most jobs are booked within three to seven days of you accepting the quote.
